Comprehensive Analysis of Common Issues in Precision Sheet Metal Spraying Processes and Their Solutions

Introduction

Shenzhen Onehope Intelligent Manufacturing Technology Co., Ltd. in sheet metal parts for new energy batteries, automotive components, agricultural tools, aluminum alloy parts manufacturing, and technical services. Backed by high standards in raw materials, advanced domestic and imported equipment, and highly skilled technicians, we are capable of handling full-cycle precision metal processes with consistency and efficiency.

In our current operations, precision spraying plays a pivotal role. From fully automated equipment to manual operations, the choice of raw materials and surface preparation has a significant impact on the final finish. As one of the most important surface treatment processes, powder coating involves applying electrostatically charged powder to metal surfaces and baking at 180–220°C to achieve durable and corrosion-resistant coatings. However, various challenges may arise in actual production. Below, we analyze common defects and propose effective solutions.

Overview and Application of Spraying Technology

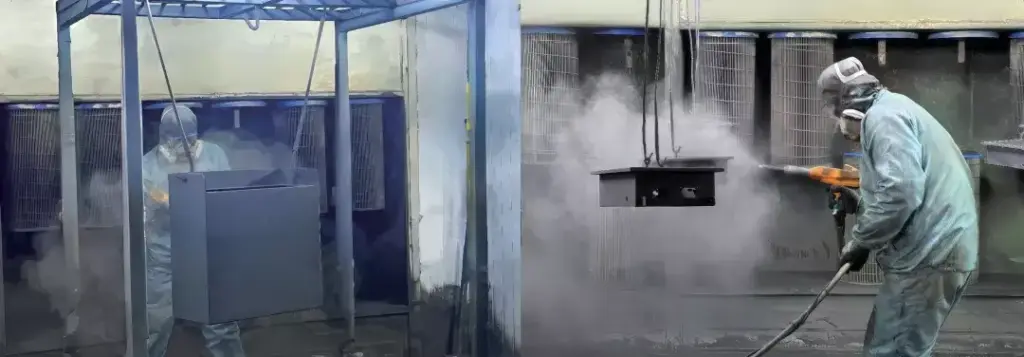

Spraying refers to the process of evenly applying coating materials using air pressure. Plastic powders are sprayed electrostatically onto aluminum surfaces and cured at high temperatures to form coatings with strong adhesion and corrosion resistance. Compared to traditional paints, powder coatings are more environmentally friendly, do not require solvents, and offer excellent performance. They are widely used in electronics, automotive, household appliances, construction, and other industries, significantly enhancing product appearance and durability.

Common Spraying Defects and Analysis

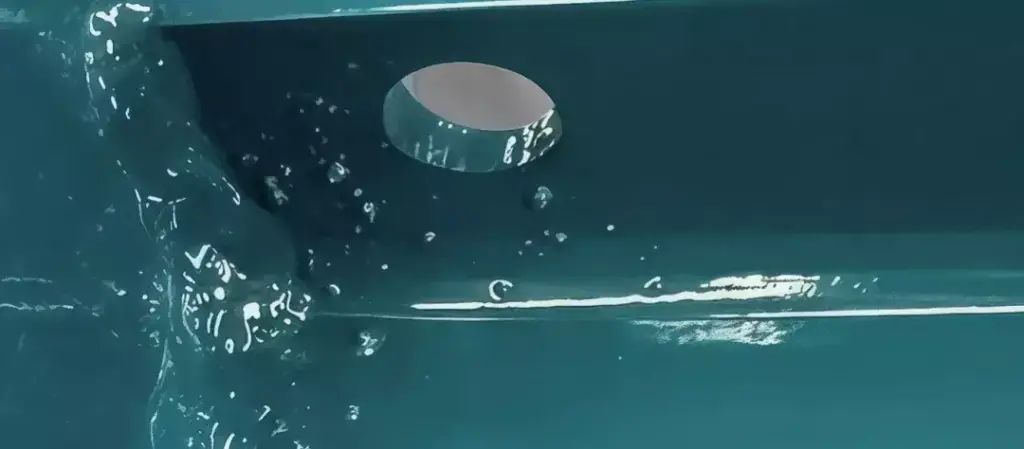

1. Runs and Sags: Runs occur when the coating accumulates and flows downward due to gravity, resulting in uneven thickness. This is usually caused by overly diluted coatings, incorrect spraying distance or technique, poor environment control (e.g., airflow turbulence), or unclean substrates.

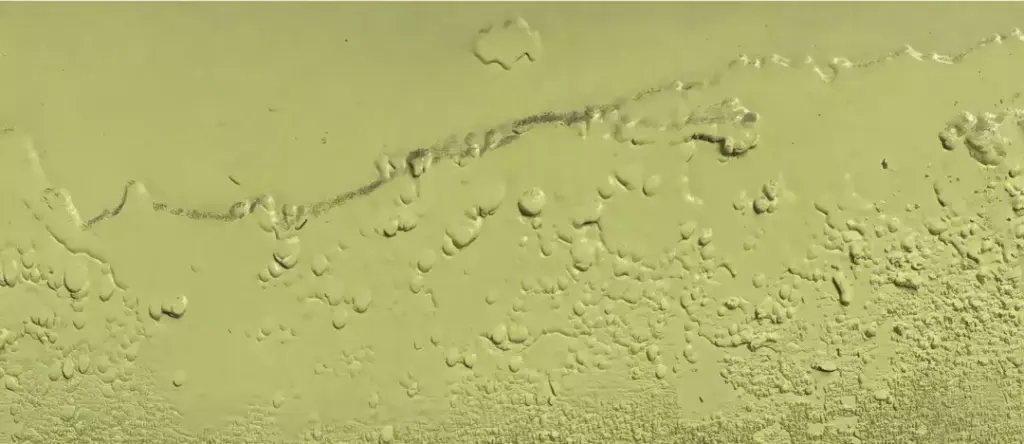

2. Air Bubbles: Air bubbles result from residual moisture, oil, or dirt on the surface. If the surface isn’t properly cleaned, volatile substances can form bubbles during curing. This compromises the coating’s appearance and integrity

3. Poor Coverage or Exposed Substrate: Poor coverage occurs when the paint film is too thin or poorly distributed. Causes include incorrect pigment ratio or uneven spraying.

4. Poor Adhesion: Poor surface pretreatment or excessive smoothness can result in weak bonding between the coating and the aluminum substrate.

5. Color Differences: Color inconsistency may stem from using different paint batches or improper repair techniques. Replacing tools or improper spray overlap may also result in shade variation.

Holistic Solutions

1- Targeting Runs and Sags: Adjust viscosity, spraying pressure, and flow rate. Maintain uniform thickness (20 μm per coat). Use proper spraying angles and ensure clean environments.

2- Solving Air Bubbles: Strictly degrease and clean aluminum surfaces. Use clean and dry compressed air. Adjust spray environment for proper humidity and temperature.

3- Improving Coverage: Select high-opacity base coatings and spray evenly. Use correct technique and adequate coating thickness.

4- Enhancing Adhesion: Roughen the surface with sandblasting and ensure thorough cleaning.

5- Eliminating Color Differences: Use consistent paint batches and replace equipment regularly. Optimize storage conditions and avoid direct sunlight or humidity.

Conclusion

Spraying is critical in the metal finishing industry. In practice, various problems can occur due to equipment, technique, and materials. By identifying root causes and making targeted improvements, manufacturers can improve coating quality, reduce costs, and enhance competitiveness. Onehope Technology will continue to invest in innovation and provide professional solutions tailored to customer needs—ensuring long-term partnerships and mutual success.

Thank you for reading. We hope this article has been helpful to you. Of course, you are also welcome to contact us via email or instant chat. We are more than happy to assist you in solving your problems.
